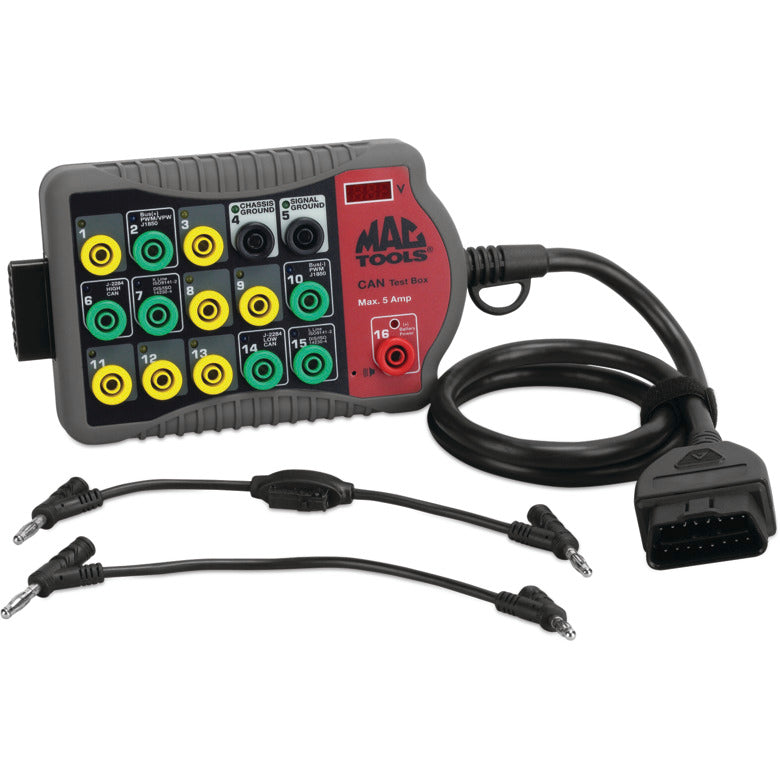

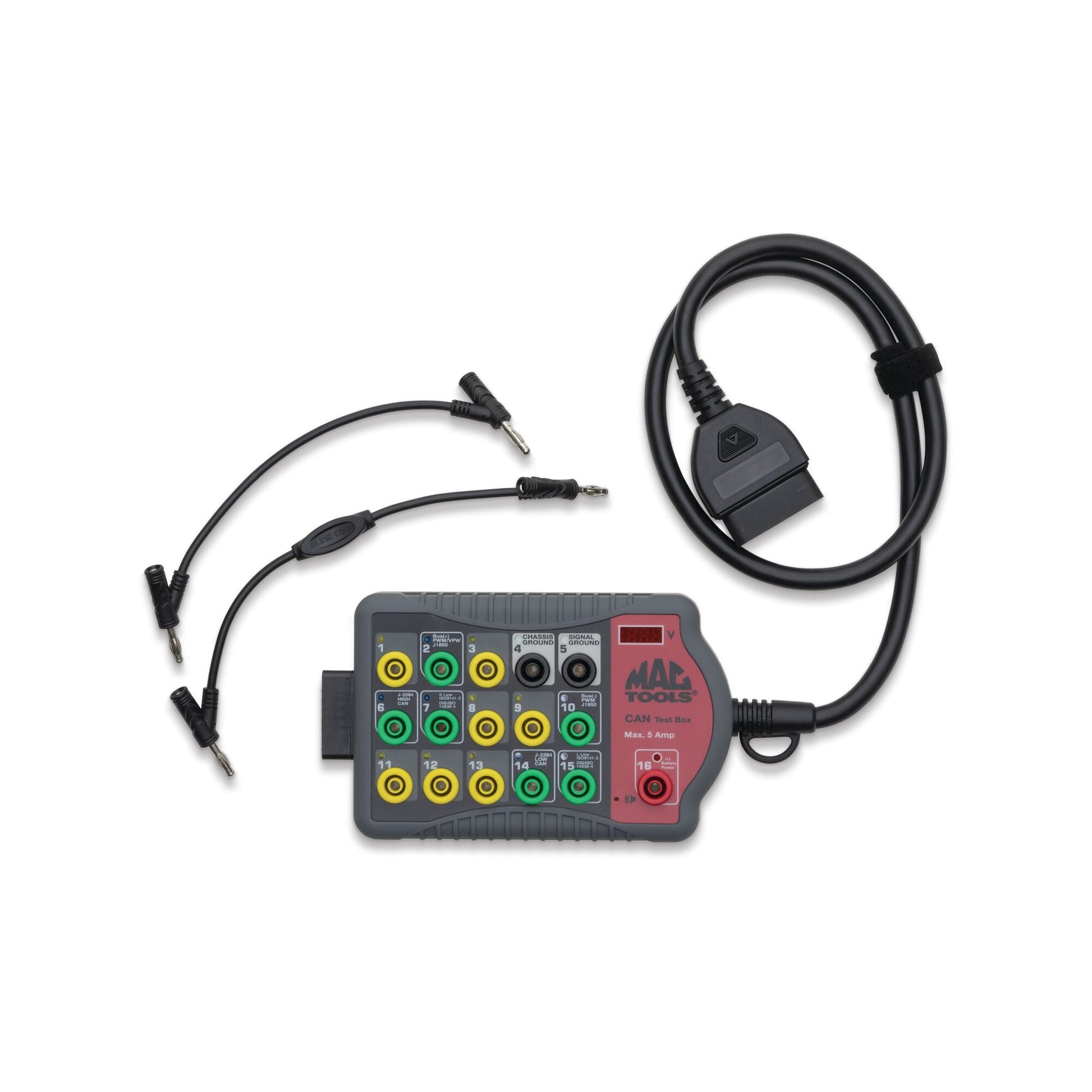

CAN Test Breakout Box

Diagnose electrical faults and CAN bus line activity .Detects data and protocol communication .Displays system voltage – Display and high/low alarm .LEDs at pinout verify signal and ECU activity .Connects between data link connector (DLC) and scan tool .Monitors system voltage – display and high/low alarm .Continuous numeric display or voltage .Check and monitor battery voltage .Connect leads for increased diagnosis, and monitoring .Probe lines with scope or DMM for detailed signal information .Ideal for troubleshooting OBD II communication issues .UNLIKE OTHER DEVICES, THIS UNIT HAS THE FOLLOWING: Digital voltage readout allows technician to view pin 16V without connecting DMM; Terminal LEDs and flashing LEDs for ECU activity allow technicians to view which pins have power, ground, and communication without connecting DMM; Color coded terminals to easily identify which pins should have power, ground, and signal; Audible signal for high/low voltage alarm – useful for wiggle tests, etc.

Additional Information

• Country of Origin: CN
• Warranty: V1
